Open-Source Alternatives to Alteryx in 2026

TL;DR. Alteryx is still the most polished commercial visual ETL tool on the market. It is also expensive, locked-in, and increasingly hard to justify for teams that don’t need every single feature. The open-source landscape in 2026 has matured to the point where most Alteryx use cases — and many it doesn’t cover well, like very large data and modern table formats — have a credible open alternative. This post walks through the main contenders, what each is best at, and where each falls short.

Why this post exists

Alteryx Designer changed how a generation of analysts thought about data preparation. The drag-and-drop canvas was genuinely a leap forward in the 2010s. But the commercial reality has shifted:

• License fees have climbed steadily; per-seat costs have priced out small teams entirely.
• The 2024 take-private and subsequent product reorganisation introduced uncertainty about long-term direction.
• Modern data formats (Parquet, Delta Lake, Iceberg) are first-class citizens in the open-source tooling but still feel bolted on in Alteryx.
• Cloud-first competitors (dbt, Fivetran, Hightouch) have eaten the “EL” half of “ETL” entirely.

If you’re in the seat where the renewal email shows up next quarter, this is the landscape you’re choosing from.

What we’re comparing on

Five practical criteria for visual ETL tools:

1. Visual canvas quality. How does it feel to actually drag, connect, and inspect nodes?
2. Node coverage. How wide is the built-in node library? Joins, fuzzy matching, aggregations, time-series, cleaning, statistical functions, geo, ML.
3. Performance and data volume. What size of data can you realistically process before you need to off-load to a warehouse?
4. Local vs server. Can you run it standalone on a laptop, or does it require infrastructure?
5. Code escape hatch. When the visual canvas isn’t enough, can you drop into Python or SQL — and can you export the visual flow as code?

The contenders

Flowfile

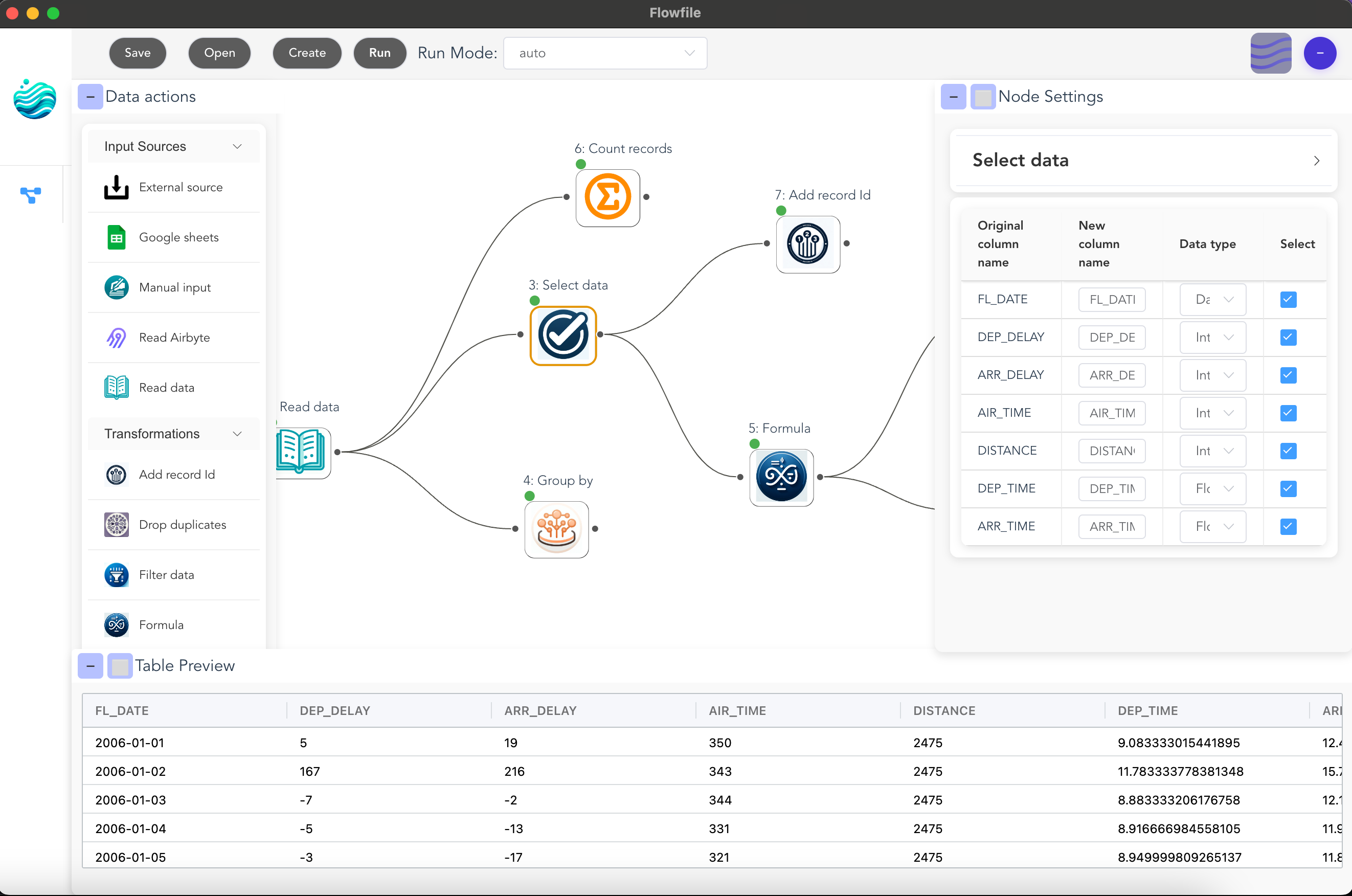

Flowfile is a visual ETL tool and Python library built on Polars. It has a drag-and-drop canvas with 30+ node types covering joins (including fuzzy match), filters, pivots/unpivots, aggregations, formula columns, sort, sample, dedup, polars-code, sql-query, and python-script nodes. It connects to PostgreSQL, MySQL, SQL Server, Oracle, DuckDB, S3, Azure Data Lake Storage, GCS, and Kafka. The catalog uses Delta Lake under the hood, so you get versioning and time travel for free.

• Visual canvas. Modern, fast (VueFlow-based), with full data preview at every node.
• Performance. Polars-native means it scales out of the box to tens of millions of rows on a laptop and supports streaming for larger-than-RAM data.
• Local first. Installs with pip install flowfile or as a desktop app. No server required.
• Code escape hatch. Three of them: a Python script node, a SQL query node, and full code generation that exports any visual flow as a standalone Polars script.
• Where it falls short. Smaller community than KNIME. Less stats / ML node coverage out of the box (although the Python script node closes that gap).

KNIME Analytics Platform

KNIME is the elder statesman of open-source visual analytics. Released in 2006, it has the largest node library of any tool on this list — over 4,000 nodes covering everything from data prep to deep learning to chemistry-specific operations.

• Visual canvas. Mature, slightly dated UX. Powerful but visually heavier than newer tools.
• Node coverage. Best-in-class. If a node exists anywhere, it exists in KNIME.
• Performance. Decent on medium data; not as fast as Polars-based tools on heavy aggregations and joins. Out-of-core processing requires extensions.
• Local first. Yes — Analytics Platform runs entirely on a laptop. Server features are paid (KNIME Business Hub).
• Code escape hatch. Python and R nodes. No code-generation feature.
• Where it falls short. Performance on very large data. UI feels its age. Some features are gated behind the commercial Hub product.

Apache Hop

Apache Hop is the modern successor to Pentaho Kettle, focused on data orchestration. Strong story for running pipelines on a server, in containers, or as part of a CI/CD flow.

• Visual canvas. Functional, engineer-oriented.
• Node coverage. Wide on integration (lots of connectors), narrower on analysis nodes.
• Performance. Good. JVM-based; handles large data well in batch.
• Local first. Runs locally for development, but the design centre is server-based execution.
• Code escape hatch. XML-based pipeline definitions; Hop is more code-friendly than Alteryx but less code-generating.
• Where it falls short. Less polished for ad-hoc analyst work; learning curve is steeper than KNIME or Flowfile.

Airbyte

Airbyte is open-source data movement — the EL of ELT. If your problem is “I need to land Salesforce / HubSpot / Postgres data into Snowflake/BigQuery/DuckDB”, Airbyte is excellent.

• Visual canvas. Has connector configuration UI but is not a visual transformation tool.
• Node coverage. Hundreds of source connectors, dozens of destinations. Transformation is delegated to dbt or your warehouse.
• Performance. Engineered for high-throughput batch and incremental sync.
• Local first. Runs locally via Docker; primarily designed for self-hosted server or cloud SaaS.
• Code escape hatch. Connectors are code. Transformation isn’t really part of the product.
• Where it falls short. This is an EL tool, not a T tool. Pair it with dbt or Flowfile for the transformation layer; don’t expect it to replace Alteryx Designer on its own.

dbt

dbt is the dominant SQL transformation framework. Not visual at all — but worth mentioning because for a lot of “ex-Alteryx” workflows that ended up in a warehouse, dbt + the warehouse + a BI tool is the modern shape.

• Visual canvas. None (dbt is SQL-first; lineage graphs exist in dbt Docs but aren’t a build canvas).
• Node coverage. N/A — you write SQL.
• Performance. Whatever your warehouse delivers.
• Local first. No. dbt is fundamentally a warehouse tool.
• Code escape hatch. It is the code.
• Where it falls short. Wrong shape for users who need a visual canvas. But if your team has migrated to Snowflake/BigQuery/Databricks and is willing to write SQL, dbt is the right answer for that world.

Side-by-side comparison

Criterion	Flowfile	KNIME	Apache Hop	Airbyte	dbt
Visual canvas	Yes (modern)	Yes (mature)	Yes (engineer-y)	Partial (config only)	No
Node count	30+	4000+	~400	Hundreds of connectors	N/A
Engine	Polars (Rust)	Java + extensions	JVM	JVM	Warehouse SQL
Local-first	Yes	Yes	Yes (dev)	Local Docker	No
Server / scheduling	Built-in	Paid Hub	Yes (focus)	Yes (focus)	dbt Cloud or self-host
Code escape	Python, SQL, code-gen	Python, R	XML	Connectors as code	Pure SQL
Modern table formats	Delta Lake (built-in)	Via extensions	Yes	Via destination	Via warehouse
Best for	Analysts who want speed + locality + code escape	Anything you can imagine, breadth-first	Server-side orchestration	Data movement (EL)	SQL-first warehouse transformation
License	MIT	GPLv3 (AP), proprietary (Hub)	Apache 2.0	Elastic License v2	Apache 2.0

How to actually choose

Some heuristics that hold up in practice:

• You’re a single analyst or small team replacing Alteryx Designer → start with Flowfile or KNIME. Both are free, both run on a laptop, both will look familiar in 30 minutes. Flowfile is faster on heavy data; KNIME has more nodes for niche cases.
• You’re a data engineering team that needs orchestration → Flowfile (built-in scheduler with interval and table-update triggers, lineage from the catalog) or Apache Hop if you want a JVM-native, server-first design.
• Your problem is “land data in our warehouse” → Airbyte for the EL, dbt for the T. Don’t try to use either as Alteryx’s replacement on its own.
• Your team has already moved to a warehouse and writes SQL → dbt. Stop fighting it.

What to migrate first

If you’re committing to a move off Alteryx, the lowest-risk path is:

1. Pick one workflow that ran weekly and was painful.
2. Rebuild it from scratch in the new tool (don’t try to convert).
3. Run both in parallel for a month.
4. Compare outputs row-by-row.
5. Decommission the Alteryx version.

Repeat with the next workflow. Most teams are surprised how much faster the rebuild is than they expected — visual ETL concepts translate cleanly between tools, and the act of rebuilding is also an audit of the old logic, which usually had at least one bug nobody noticed.

Try Flowfile

Of the tools above, Flowfile is the one we make. We think it’s the right answer for analysts and small teams that want the Alteryx-shaped experience without the licence cost, the per-seat math, or the lock-in. It’s free, MIT-licensed, runs on your laptop, and exports your flows as standalone Polars code so you’ll never lose your work to a vendor.

Install it locally or try the browser demo — no signup, no credit card, no email gate.

---

Related reads: Why Your Data Should Stay on Your Laptop for the local-first argument in depth, Polars vs Pandas in 2026 if you’re curious about the engine, and Demystifying Delta Lake for the table format that powers the catalog.
